Description

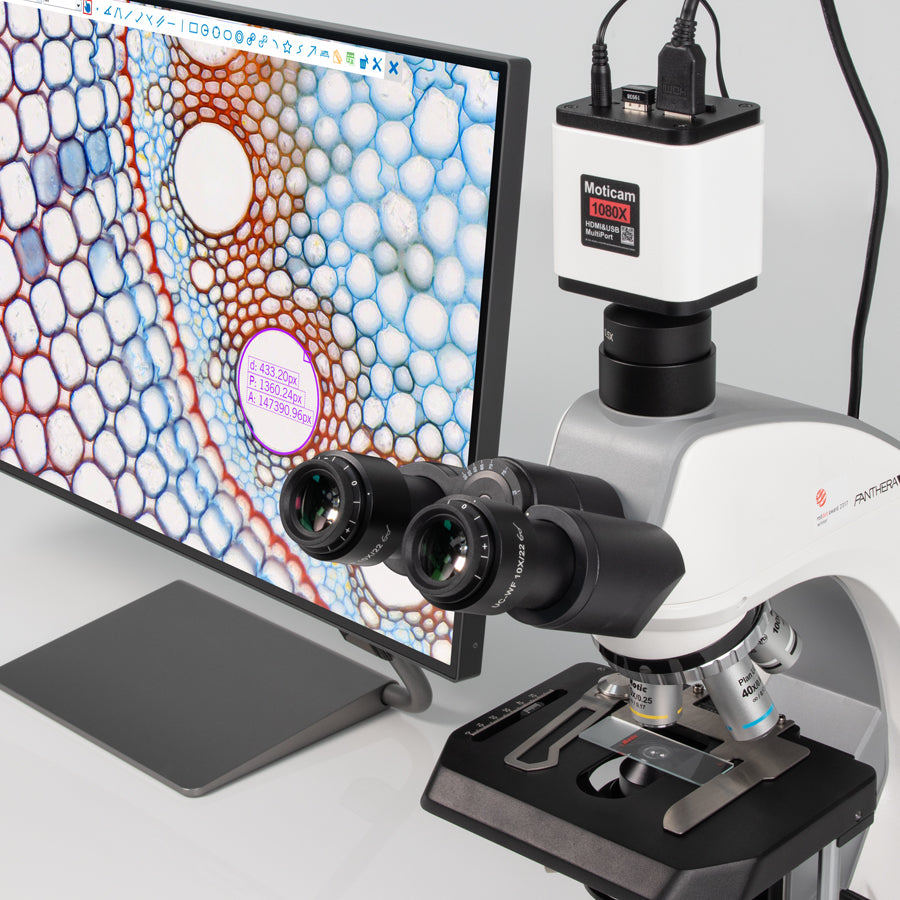

The Moticam 1080X, designed for ease of use and the ability to output fast live images in Full HD (1920x1080px), displays your live images on a screen by connecting the camera through the HDMI port. Make live measurements, notes, image adjustments and more, thanks to its on-board software that can be controlled through the screen by connecting a USB mouse to the camera.
By having an integrated SD card slot, saving images won´t require a computer, making it easy to save and organize your images and videos. Its Wi-Fi connectivity allows you to connect with a computer or mobile device, even simultaneously, and share your live images with ease.
Specifications
Model : Moticam 1080X
Sensor type : CMOS IMX185
Sensor size : 1/1.9"
Imaging area : 7.20x4.05mm
Capture resolution info : 2MP (1920x1080 pixels)
Image capture resolution (on SD-card) : 2MP (1920x1080 pixels)
Video capture resolution (on SD-card) : Full HD (1920x1080 pixels)
Live display mode through Wi-Fi : Full HD (1920x1080 pixels)
Live display mode through HDMI : Full HD (1920x1080 pixels)
Pixel size : 3.75x3.75μm
Scan mode : Progressive
Shutter mode : Rolling shutter

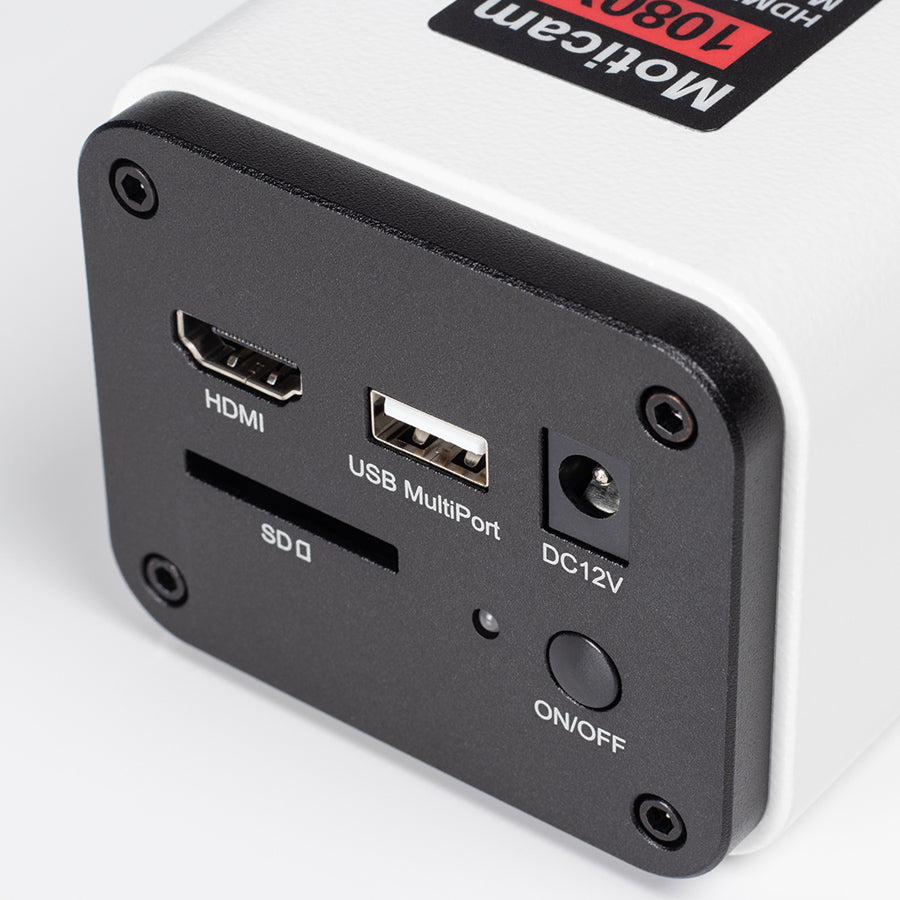

Data transfer : HDMI (1080p), SD card, Wi-Fi dongle
Max. frames per second (fps) : HDMI: Full HD (1920x1080) @ 30 fps (*), Wi-Fi dongle: 1920x1080 (Full HD) @ 25 fps (*)
Exposure time : 0.06ms ~ 918ms
Operating temperature : From -10 to +50 Degrees Celsius non condensing
Sensitivity : 1120mV with 1/30s, 0.15mV with 1/30s
Slot : SD Card
Buttons : On/Off
Minimum computer requirements : 2GHz dualcore - RAM memory 2GB - Video memory min. 512 MB
Lens mount : C-Mount
Focusable lens : 12mm
Software : Motic Images Plus 3.1 for Windows 10, MAC OSX10.9 or higher and MotiConnect App for iOS and Android
Functions : Including exposure, gain, white balance, color adjustment, sharpness and denoising control, zoom, mirror, comparison, freeze, measure, cross
Power supply : 12V (External Power supply)
Package includes : CS ring adaptor, focusable lens, 30mm and 38mm eyepiece adapters, Motic 4-dot calibration slide, macro calibration card, macro tube, universal power supply, HDMI cable, USB mouse, Wi-Fi dongle and USB Pendrive with Motic Images Plus 3.1
