Description

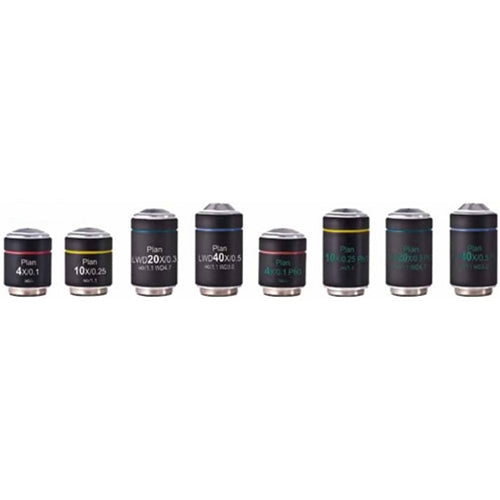

Motic Color Corrected Infinity System EC Plan Achromat objectives are lead free. Each lens is sold separately. When ordering choose from the following:

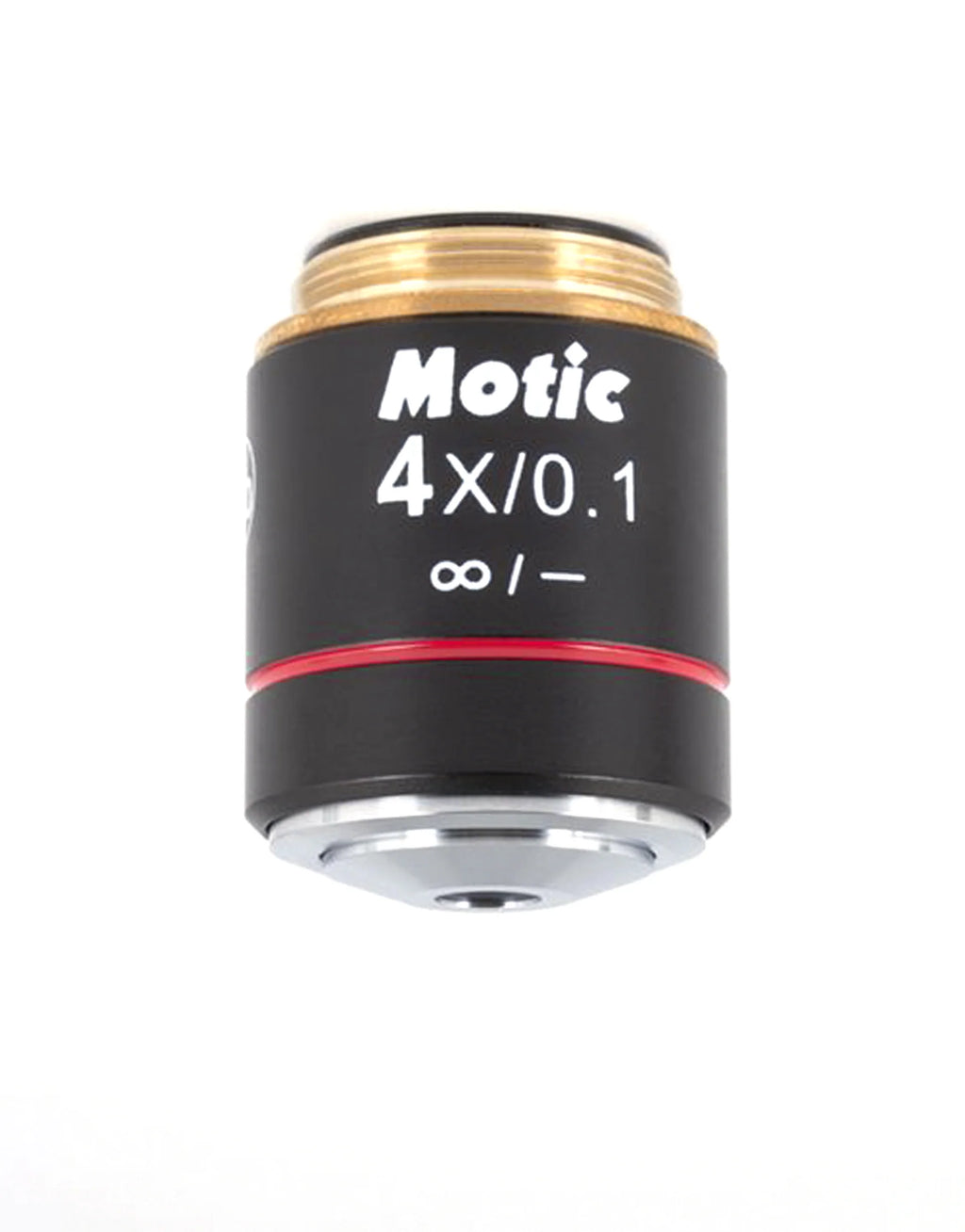

EC Plan Achromat 4x/0.1 (WD = 15.9mm)

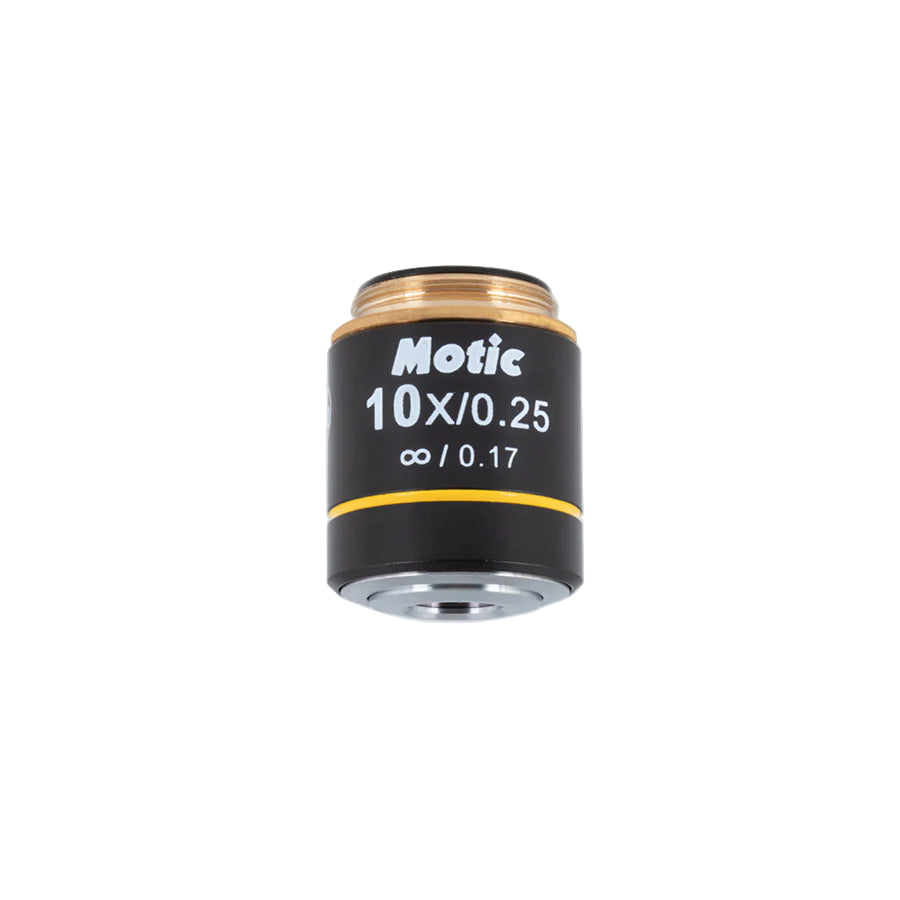

EC Plan Achromat 10x/0.25 (WD = 17.4mm)

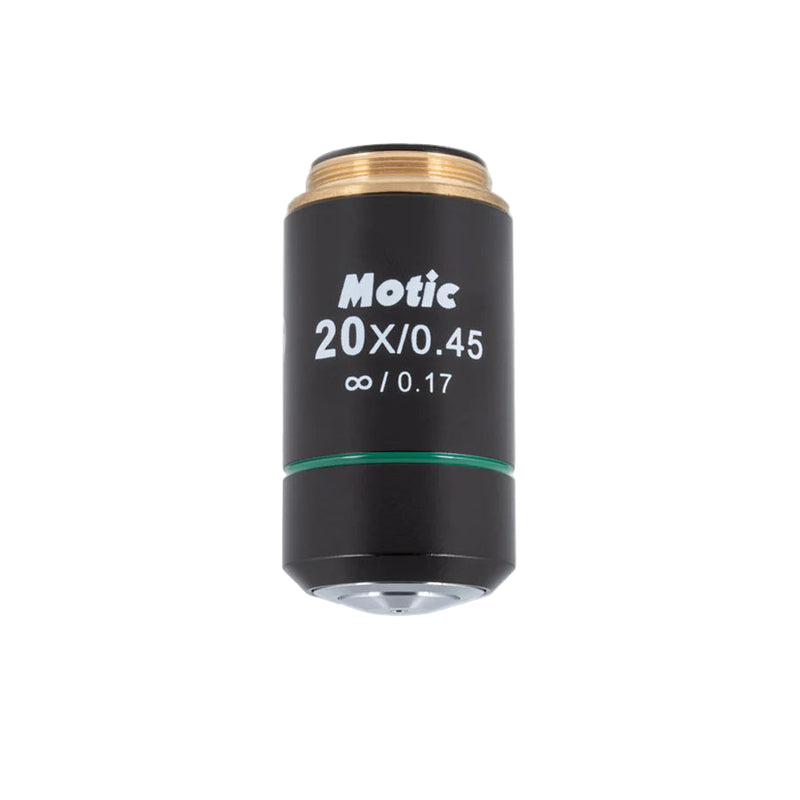

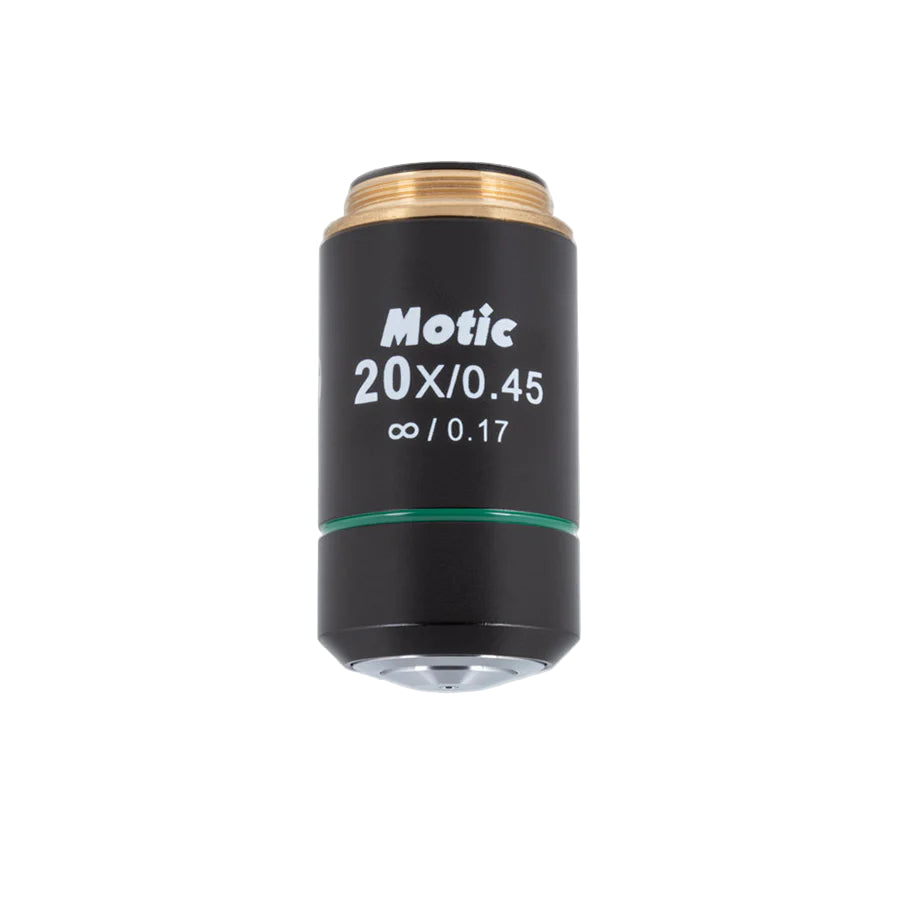

EC Plan Achromat 20x/0.45 (WD = 0.9mm)

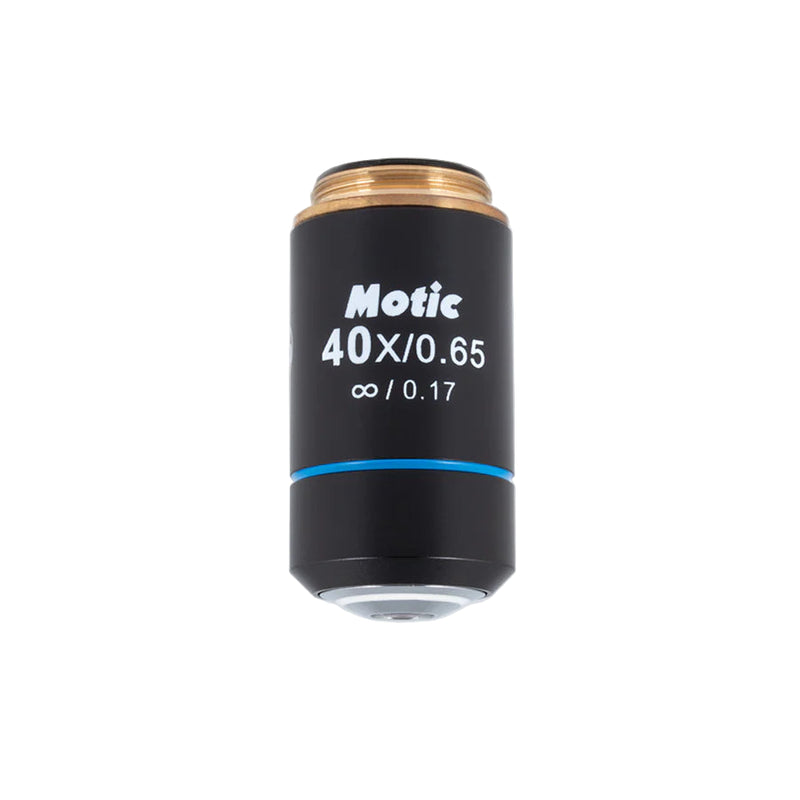

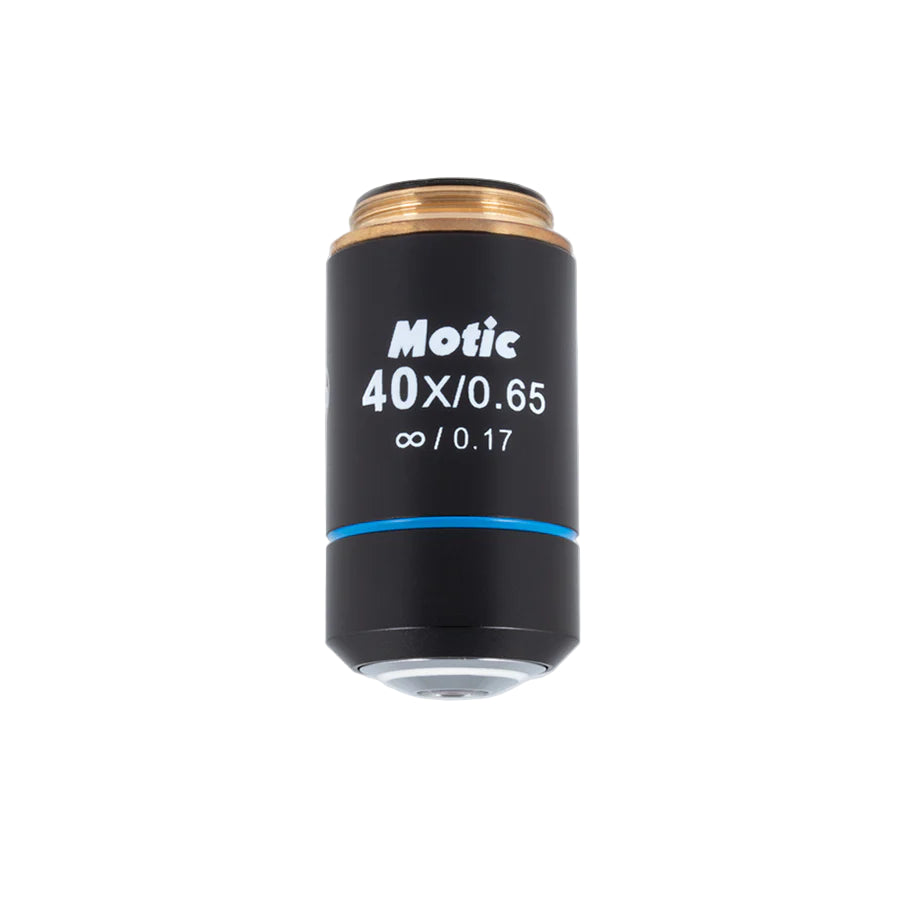

EC Plan Achromat 40x/0.65 (WD = 0.5mm)

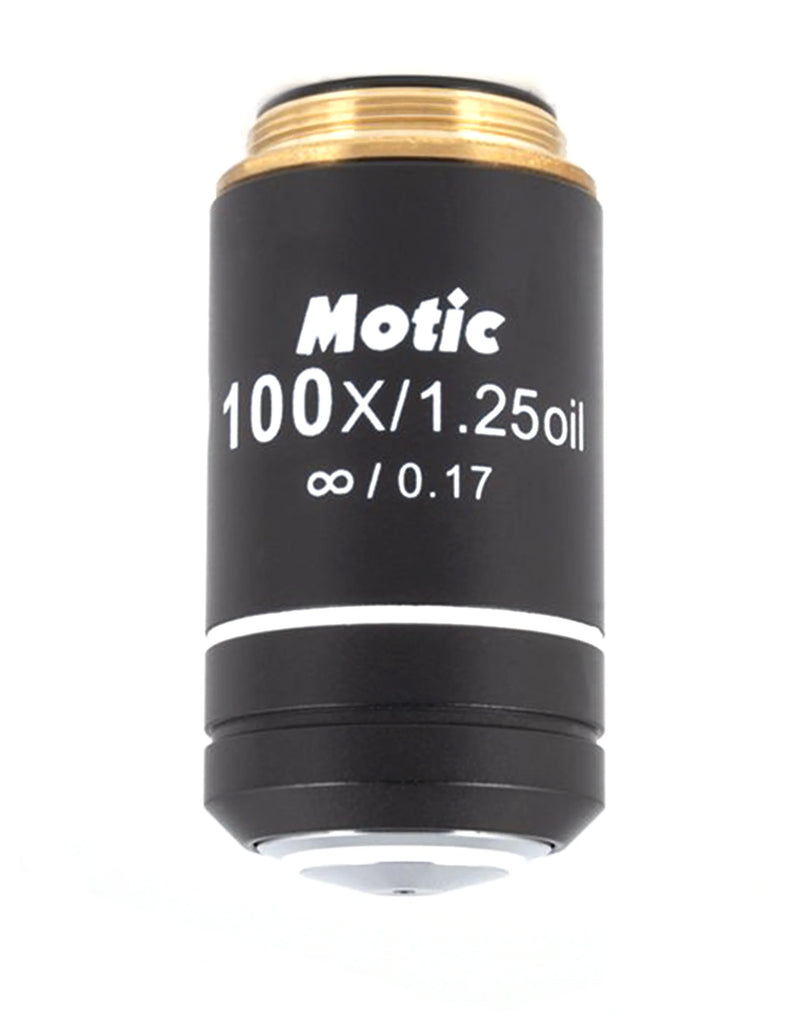

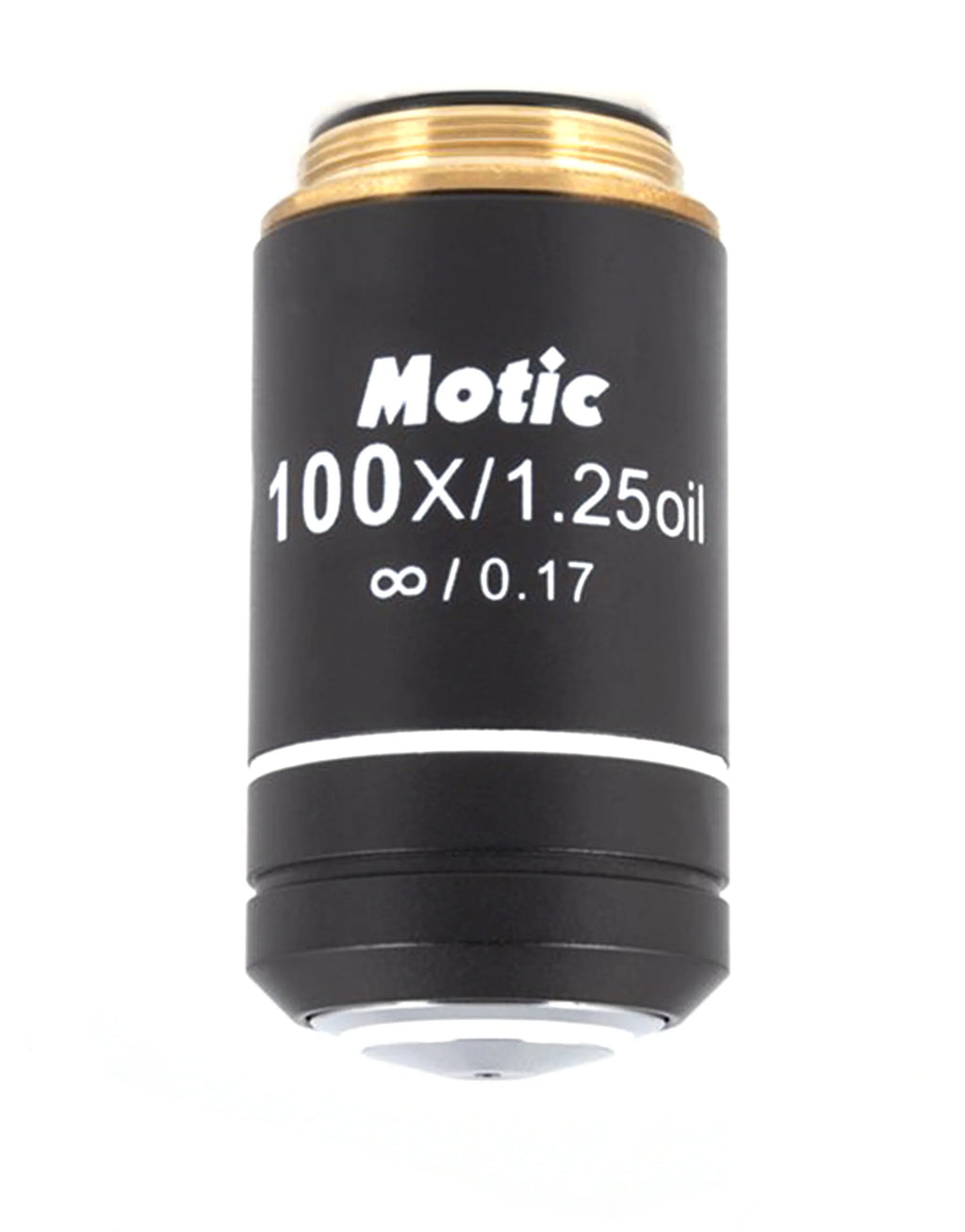

EC Plan Achromat 100x/1.25 spring, oil (WD = 0.15mm)
All objectives are RMS thread size 20.32mm / pitch 0.706 and DIN of 45mm
| Model |
CCIS EC Plan Achromat 4X/0.1 (WD=15.9mm) CCIS® Plan achromatic objective EC PL 10X/0.25 (WD=17.4mm) CCIS® Plan achromatic objective EC PL 20X/0.45 (WD=0.9mm) CCIS® Plan achromatic objective EC PL 40X/0.65/S (WD=0.5mm) CCIS EC Plan Achromat objective 100X/1.25/S |
| Objective mounting thread | W 4/5"x1/36" (RMS standard) |
| Objective type | Plan achromatic |
| Objective tube length | Infinity CCIS® |
| Objective magnification | 4X, 10X, 20X, 40X, 100X |
| Objective N.A. | 0.1, 0.25, 0.45, 0.65, 1.25 |
| Objective W.D. | 15.9mm, 17.4mm, 0.90mm, 0.5mm, |
| Objective DIN | 45mm |
| Objective coverglass thickness | 0.17 |
| Valid for | BA210, BA210E, BA310 and BA310E Series |
