Description

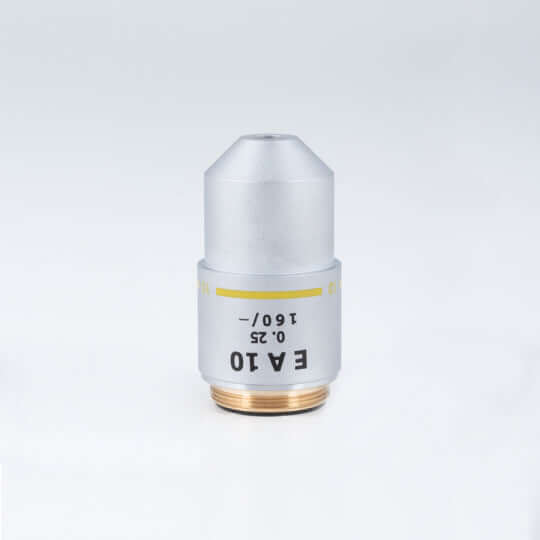

| Model | Achromatic objective EA 10X/0.25 (WD=5mm) |
|---|---|
| Objective mounting thread | W 4/5"x1/36" (RMS standard) |
| Objective type | Achromatic |
| Objective tube length | 160mm |

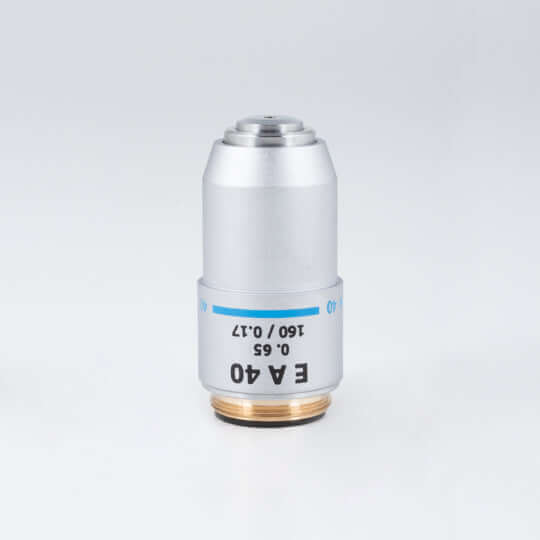

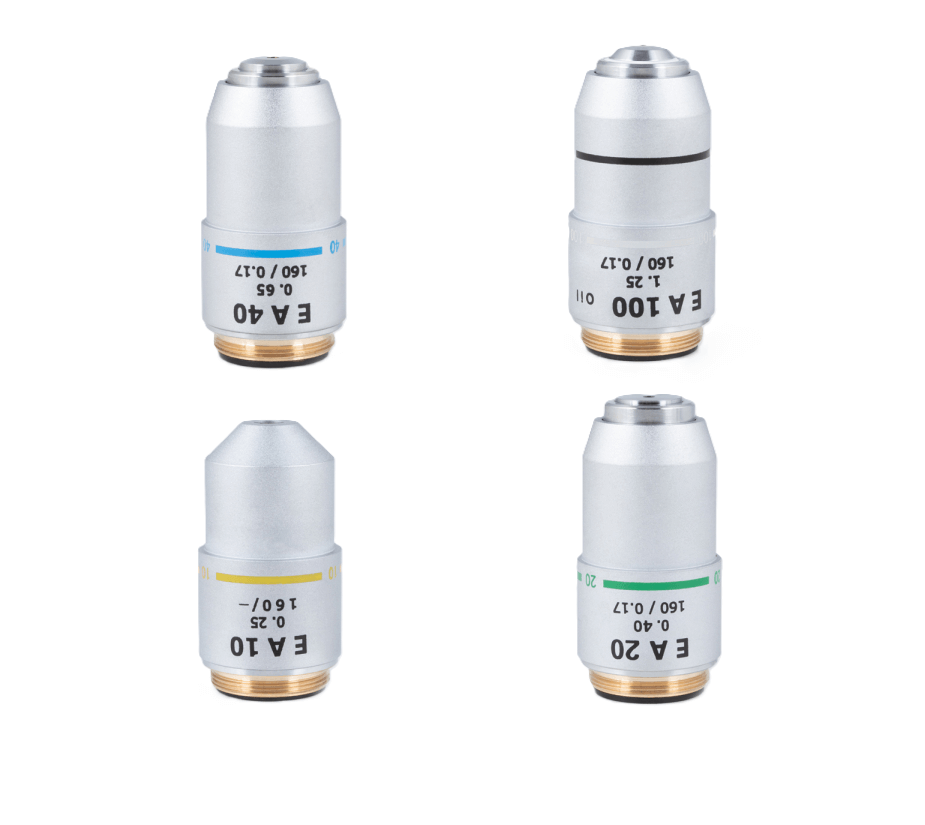

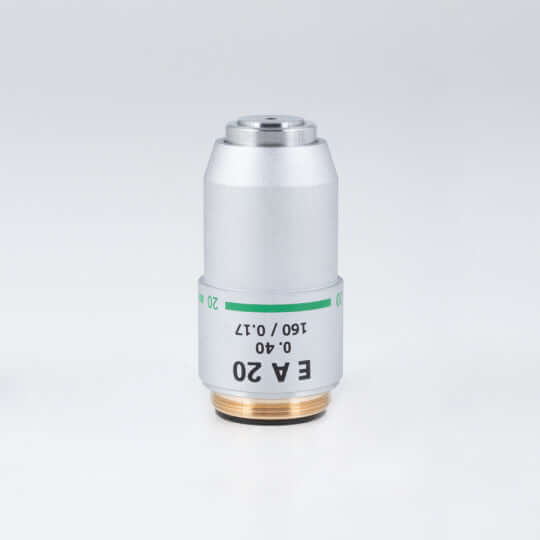

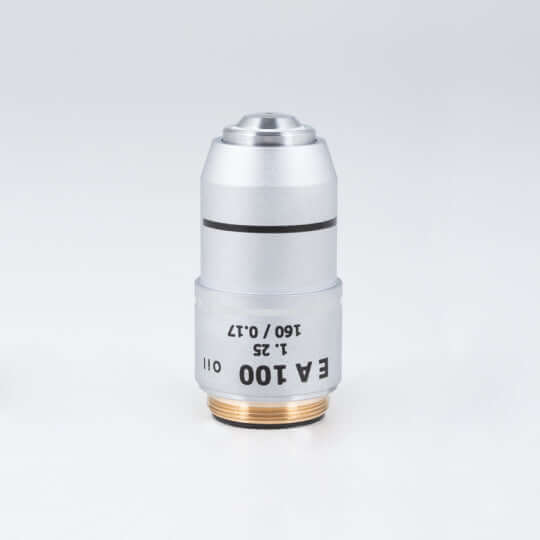

| Objective magnification | 10X , 20X , 40X , 100X |
| Objective N.A. | 0.25, 0.40, 0.65 , 1.25 |
| Objective W.D. | 5mm, 0.80mm, 0.30mm , 0.06mm |
| Objective DIN | 45mm |
| Objective coverglass thickness | 0.17 |
| Valid for |
1801 LED Cordless, 1802 LED Cordless, 1820 LED Cordless, DM-1802, 2801 LED Cordless, 2802 LED Cordless, 2820 LED Cordless, 2823 LED Cordless, PM-1805, PM-1805 LED Cordless (3000K-3500K), PM-1820 LED Cordless (3000K-3500K), PM-1823, RED100, RED101, RED120 (4X, 10X, 40X), RED120 (4X, 10X, 40X, 60X), RED120, RED130 (4X, 10X, 40X), RED130 (4X, 10X, 40X, 60X), RED130, RED131 (4X, 10X, 40X), RED131 (4X, 10X, 40X, 60X), RED131, RED132 (4X, 10X, 40X), RED132 (4X, 10X, 40X, 60X), RED132, RED50X Plus, BA81A MS Corded, BA81B MS (4X, 10X, 40X), BA81B MS (4X, 10X, 40X, 60X), BA81B MS, EcoLine C-10 LED (4X, 10X, 40X), EcoLine C-10 LED (4X, 10X, 40X, 60X), EcoLine C-10 LED, EcoLine C-20 LED (4X, 10X, 40X), EcoLine C-20 LED (4X, 10X, 40X, 60X), EcoLine C-20 LED |
